HiMAE: Hierarchical masked autoencoders discover resolution-specific structure in wearable time series

Simon A. Lee1,2    Cyrus Tanade1    Hao Zhou1    Juhyeon Lee1    Megha Thukral1    Minji Han1    Rachel Choi1    Md Sazzad Hissain Khan1    Baiying Lu1    Migyeong Gwak1    Mehrab Morshed1    Viswam Nathan1    Md Mahbubur Rahman1    Li Zhu1    Subramaniam Venkatraman1    Sharanya Desai1
1Digital Health Team, Samsung Research America          2 Department of Computational Medicine, UCLA
VRB Initial Scene
2026
Paper arXiv Code OpenReview
VRB Initial Scene

Dall-E's attempt at visualizing HiMAE...

Abstract

Wearable sensors provide abundant physiological time series observations, yet the resolution at which we should extract features for downstream tasks remain unclear. We hypothesize that temporal resolution is a fundamental axis of representation learning, with different clinical and behavioral outcomes relying on features at distinct scales. To test this resolution hypothesis, we introduce HiMAE (Hierarchical Masked Autoencoder), a self-supervised framework that combines masked autoencoding with a hierarchical convolutional encoder–decoder. HiMAE produces multi-resolution embeddings across its intermediate layers that enable systematic evaluation of which temporal scales carry predictive signal, transforming resolution from a hyperparameter into a probe for interpretability. Across classification and generative benchmarks, HiMAE consistently outperforms state-of-the-art foundation models that collapse scale, while being orders of magnitude smaller. Due to the convolution based design choices behind HiMAE, the model is also compact enough to run entirely on-device, achieving sub-millisecond inference on smartwatch-class CPUs for true edge inference. Together, these contributions position HiMAE as both an efficient self supervised learning method and a discovery tool for understanding how time resolution contributes to downstream task alignment.

The Resolution Hypothesis

The resolution hypothesis emphasizes that meaningful patterns in time-dependent data can emerge at different time scales. In many real-world signals—such as data from wearables, sensors, or human behavior—important information may appear as rapid, moment-to-moment fluctuations or as slower, long-term trends. Relying on a single, fixed time scale can obscure these signals. By explicitly considering multiple temporal resolutions, models can better capture the structure of the data and reveal which time scales are most relevant for a particular outcome. In this view, resolution is not merely a technical detail, but a fundamental lens for understanding complex time-dependent phenomena.

Building a Modeling Framework to Answer the Resolution Hypothesis

Image description

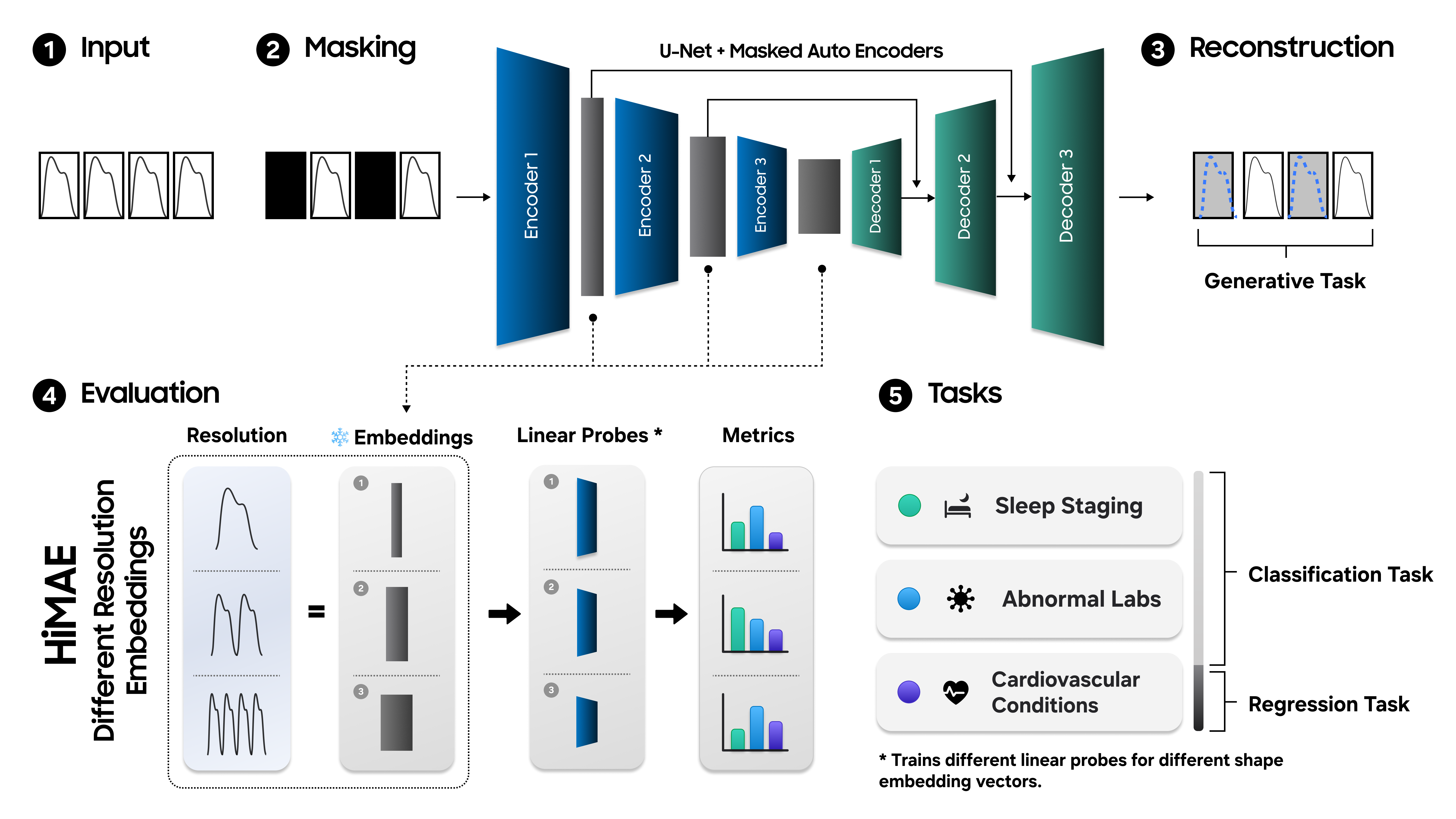

HiMAE (Hierarchical Masked Autoencoder) is a simple, interpretable way to test and act on the resolution hypothesis: instead of forcing a model to compress every temporal pattern into a single representation, HiMAE produces a stack of embeddings, each associated with a different effective temporal scale. At a high level the model takes a multichannel sequence \(x\in\mathbb{R}^{C\times L}\), breaks it into non-overlapping patches (so \(N=L/P\) patches of length \(P\)), and randomly occludes a subset via a mask \(m\in\{0,1\}^N\) (expanded to the full time axis as \(m'\in\{0,1\}^L\)). The training objective is the familiar masked reconstruction loss applied only to masked positions:

\(\displaystyle \mathcal{L}(\theta,\phi) \;=\;\sum_{t=1}^{L}\frac{m'_t}{\sum_{u}m'_u}\,\big\lVert\hat x_t - x_t\big\rVert^2,\)

with \(\hat x=g_{\phi}(f_{\theta}(\tilde x))\) where \(\tilde x\) denotes the partially observed input. The crucial architectural choice is that \(f_{\theta}\) is a hierarchical 1-D U-Net style encoder: successive downsampling stages increase the receptive field so that each intermediate activation summarizes a progressively coarser temporal context. Rather than collapsing those activations into a single pooled vector, HiMAE exposes them as separate embeddings and evaluates each with a lightweight probe; this conversion of scale from a hyperparameter into an empirical probe is what lets HiMAE directly answer which temporal resolutions carry signal for a downstream task.

From a modeling-efficiency standpoint, U-Net hierarchies approximate the ability to access long-range context while remaining linear in sequence length. A D-layer hierarchical encoder expands an effective receptive field \(R_d\) roughly as \(\;R_d = R_{d-1} + (k-1)\prod_{i=1}^{d-1}s_i\;\) (where \(k\) is kernel size and \(s_i\) the stride at stage \(i\)), so depth yields exponential coverage in terms of strides while computation scales as \(O(L)\) for convolutional contractions and expansions. By contrast, full self-attention used in many transformer variants incurs \(O(L^2)\) time and memory in the sequence length due to the attention matrix. In practice this means a well-designed U-Net can capture the same coarse, global dependencies that attention provides but at a fraction of compute and memory, which enables smaller models, faster training, and truly on-device inference.

Conceptually, HiMAE therefore performs two things at once. It leverages masked reconstruction to learn temporally coherent features and it preserves the hierarchy of scales so those features can be inspected and compared. If a clinical label is best predicted from millisecond-scale morphology, the shallow embeddings will carry the signal; if a behavioral outcome depends on slow trends, deeper embeddings will dominate. Because the architecture is compact, these discoveries can be made without resorting to very large transformer models, making HiMAE a practical tool both for improving predictive performance and for surfacing which temporal resolutions matter in real-world time-series data.


Experiments

Pretraining uses approximately 80,000 hours of wearable green PPG collected from tens of thousands of participants across multiple devices collected at Samsung Research Centers. Windows of 10 s at 100 Hz (L = 1000) are divided into patches. Optimization uses AdamW with warmup–cosine schedule; models trained up to 100k steps with large-batch protocols.

We assess generative reconstruction under three regimes—random imputation, temporal interpolation (contiguous gaps), and temporal extrapolation (future occlusion)—using held-out MSE and \(R^2\). For classification, we linear-probe pretrained encoders on 12 binary tasks across cardiovascular conditions, sleep staging, and abnormal laboratory prediction, reporting AUROC with bootstrapped confidence intervals.

Image description

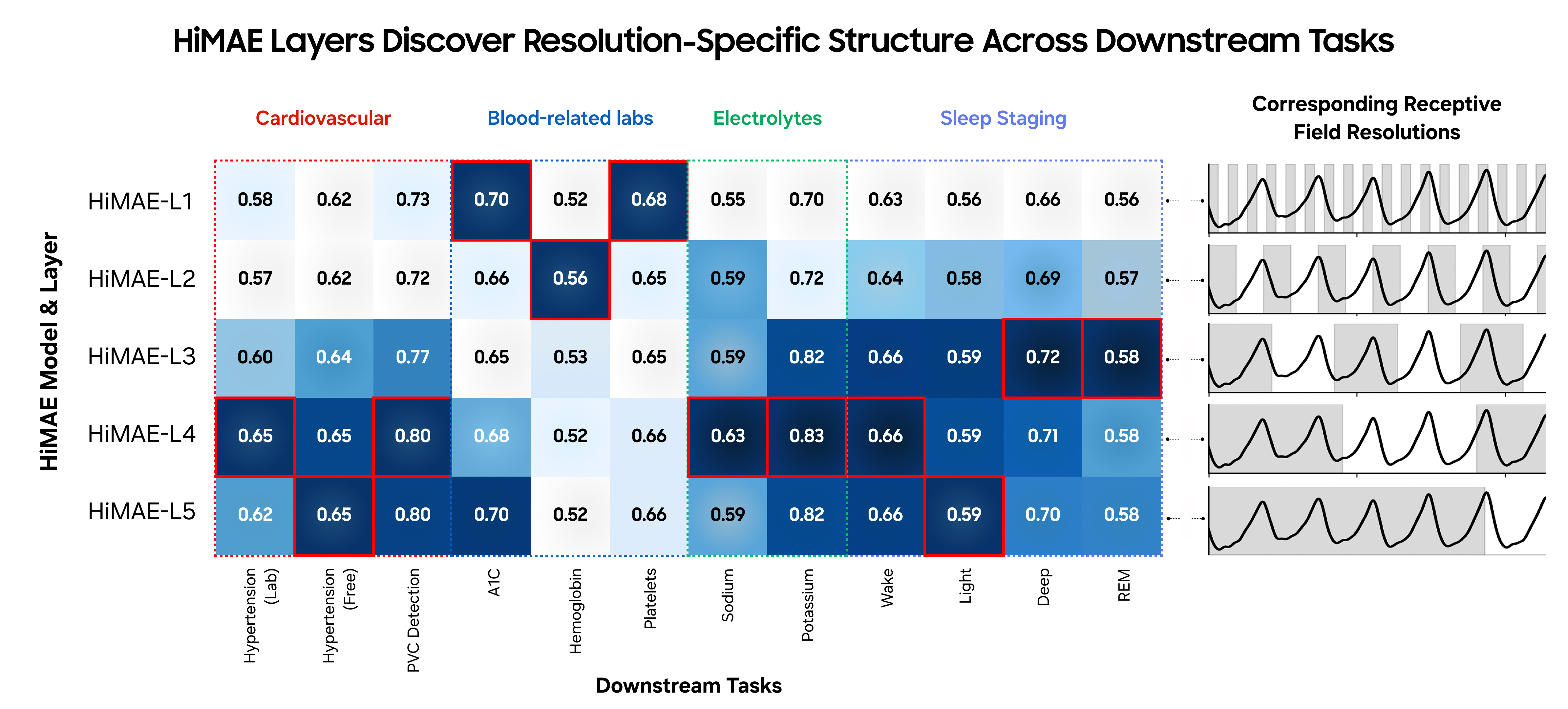

A central contribution is the resolution probe: embeddings are extracted at multiple encoder depths (each representing a different effective temporal resolution) and probed independently. Different downstream tasks peak at different layers, revealing that predictive information is concentrated at task-specific temporal scales. This validates the resolution hypothesis and shows the model can be used as a discovery tool to determine the most informative resolution for a given clinical endpoint.


How does it compare to other SSL and FMs?

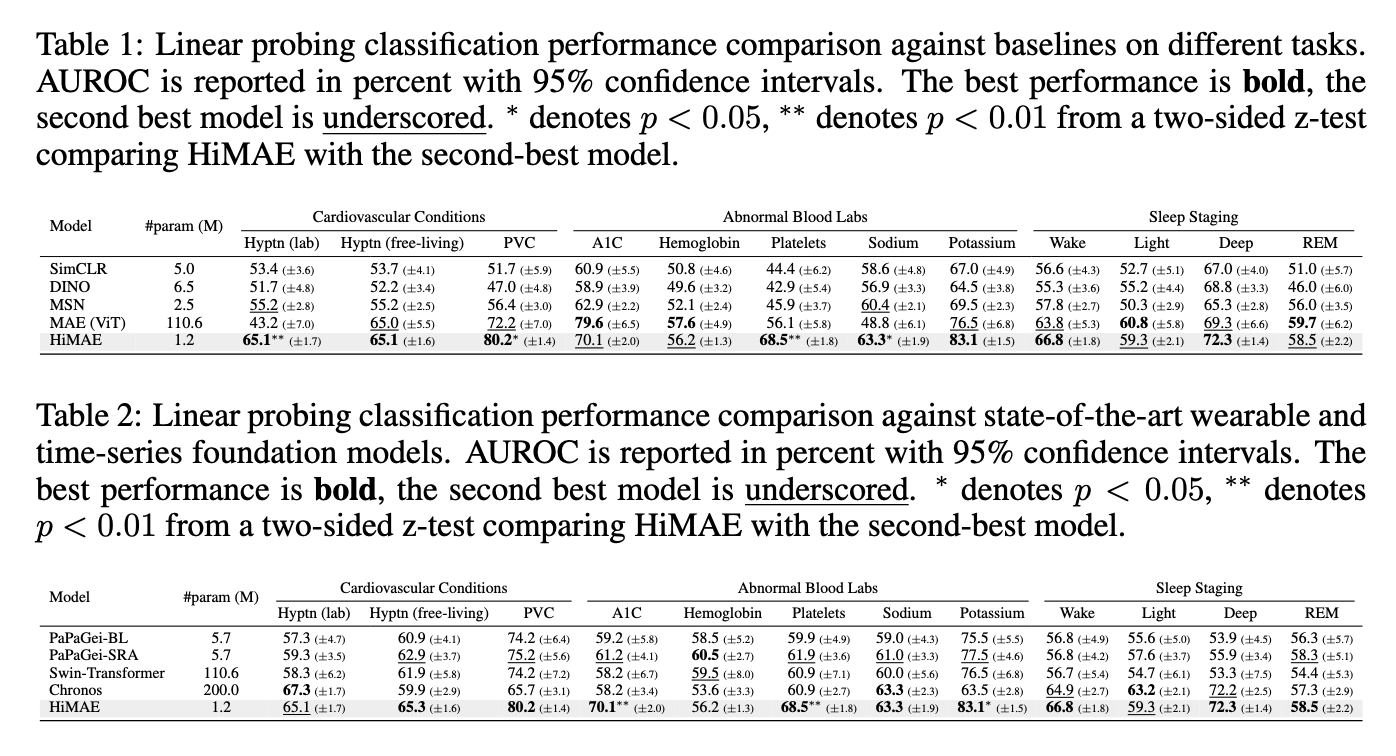

For classification, HiMAE often outperforms or matches substantially larger baselines against both SSL and Existing Foundation Models across cardiovascular, sleep, and lab prediction tasks while being far more compact (e.g., HiMAE base ≈1.2M parameters).


Image description

How does it compare in different reconstruction regimes?

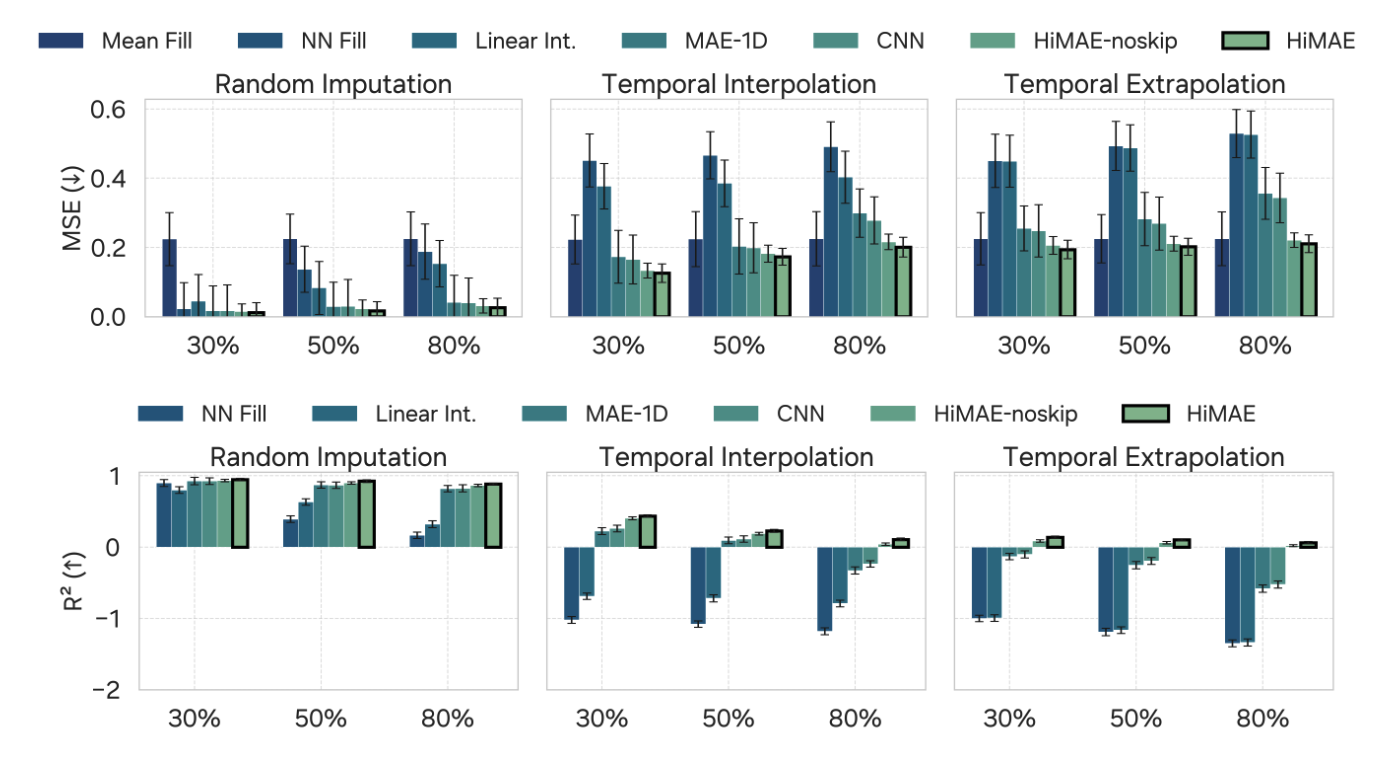

On generative benchmarks, HiMAE attains the lowest MSE and positive \(R^2\) even in challenging extrapolation scenarios, indicating robust reconstruction beyond mean-fill baselines.


Image description

Discussion

The findings reframe resolution as a structural prior: rather than collapsing scale, exposing multi-resolution embeddings yields both improved performance and interpretability. HiMAE’s convolutional hierarchy provides a favorable inductive bias for wearable signals, allowing compact models to rival much larger transformers. Limitations include the focus on 10 s windows and PPG modality; extensions to longer contexts and multimodal signals (ECG, accelerometer, EEG) are promising future directions. Clinical validation of discovered resolution-specific signals is required before translation.

BibTeX

@inproceedings{lee2025himae,
                  title={HiMAE: Hierarchical Masked Autoencoders Discover Resolution-Specific Structure in Wearable Time Series},
                  author={Lee, Simon A and Tanade, Cyrus and Zhou, Hao and Lee, Juhyeon and Thukral, Megha and Khan, Md Sazzad Hissain and Lu, Baiying and Gwak, Migyeong and others},
                  booktitle={The Fourteenth International Conference on Learning Representations},
                  year={2026},
                  url={https://openreview.net/forum?id=iPAy5VpGQa}
                }

Acknowledgements

We thank Minji Han and Rachel Choi for their expertise in UX/UI design and for crafting the specialized visualizations not supported by standard Python libraries; their design contributions were essential to this work. We also thank Praveen Raja, Matthew Wiggins, and Mike Freedman for their invaluable feedback and insightful discussions throughout the project.
